Dimensions - GTL Single Inlet Restrictors: 22.5 - 30mm Dia.

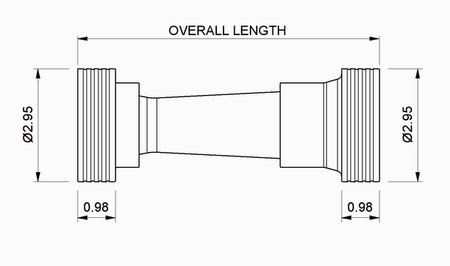

GTL Single Inlet Restrictor w/ Hose Inlet:

GTL Restrictor with Hose Inlet
Dia.
(mm)		 Part Number
(Assembly)		 Length
(inches)		 Weight
(lbs)
22.5 1168-59-50-225 7.87 0.98
23.0 1168-59-50-230 7.87 0.97
23.5 1168-59-50-235 7.87 0.96
24.0 1168-59-50-240 7.87 0.95
24.5 1168-59-50-245 7.87 0.94
25.0 1168-59-50-250 7.87 0.93
25.5 1168-59-50-255 7.87 0.92
26.0 1168-59-50-260-A 7.28 0.88
27.0 1168-59-50-270 6.89 0.86
28.0 1168-59-50-280 6.89 0.86
29.0 1168-59-50-290 6.89 0.86
30.0 1168-59-50-300 6.89 0.86

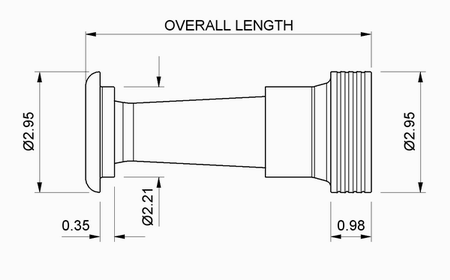

GTL Single Inlet Restrictor w/ Bell Inlet:

GTL Restrictor with Bell Inlet
Dia.
(mm)		 Part Number
(Assembly)		 Length
(inches)		 Weight
(lbs)
22.5 1168-59-51-225 6.62 0.91
23.0 1168-59-51-230 6.62 0.90
23.5 1168-59-51-235 6.62 0.90
24.0 1168-59-51-240 6.62 0.89
24.5 1168-59-51-245 6.62 0.88
25.0 1168-59-51-250 6.62 0.87
25.5 1168-59-51-255 6.62 0.86
26.0 1168-59-51-260-A 6.03 0.82
27.0 1168-59-51-270 5.64 0.80
28.0 1168-59-51-280 5.64 0.80
29.0 1168-59-51-290 5.64 0.80
30.0 1168-59-51-300 5.64 0.80
